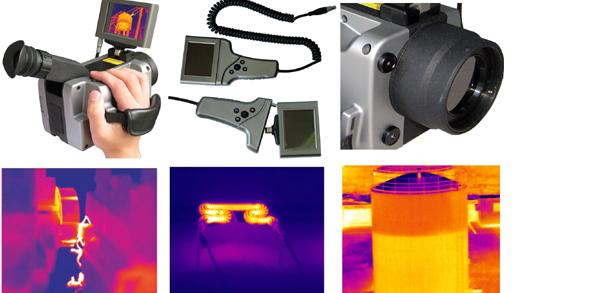

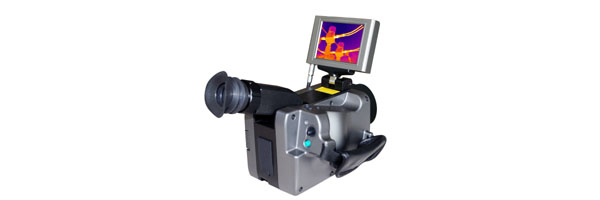

DL700 Series 384*288
-
DL700E+
-

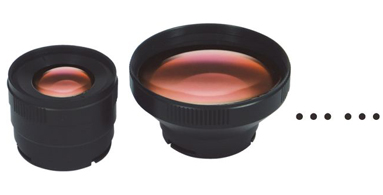

lens optional -

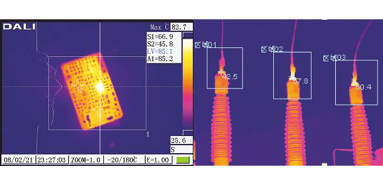

line/ara temperature
◆Auto/Manual Focus
◆Full screen CCD&Picture in Picture
◆Dual storage
◆JPEG format Pictures
◆Full measurement functions
◆All digital display
.jpg)
|
Item |
DL700C+ |
DL700E+ |
|
|
Detector characteristics |
Detector type |
Uncooled FPA microbolometer |
|
|
Array size/format |
384×288 |
||
|
Image manage |
Field of view/min focus distance |
16o×12o /0.5m |
|
|
Spatial resolutions(IFOV) |
0.88mrad |
||
|
Thermal sensitivity |
≤0.06℃@30℃ |
||
|
Frame rate |
50/60Hz |
||
|
Focus |
Manual |
Manual/Auto/Eletric | |
| Electronic zoom | 1～8X continuous | ||
|
Spectral range |
8～14um |
||
|
Built-in visible light |
300,000 pixels，Pic. in Pic. or full |
||
|
Image display |
Viewfinder | Built-in high-resolution color LCD | |
| LCD display | High-resolution color LCD, 640×480 | ||
| Image adjustment | Auto/manual gain and brightness | ||
| Color palette | 9 palettes changeable(Iron,rainbow,Grey and Grey inverted,etc.) | ||
|
Measurement |
Temperature ranges |
-20℃～+500℃,optional up to +1200℃ or +2000℃ |
|
|
Accuracy |
±2℃ or ±2% of reading, whichever is greater |
||
|
Measurement correction |
Automatic/manual |
||
|
Measurement mode |
Up to 10 movable areas(maximum, minimum and average temperatures).Up to 5 movable lines.Line profile. Isotherms. Temperature difference. Alarm(voice,color) |
Up to 4 movable spots. Up to 3 movable areas(maximum, minimum and average temperatures).Line profile. Isothem. Temperature difference.Alarm(voice,color) | |
|
Setup functions |
Date/time, temperature unit, language |
||
|
Emissivity correction |
Variable from 0.01 to 1.0 |
||
|
Backgroud temperature correction |
Automatic correction according to user input |
||
|
Atmospheric transmission correction |
Automatic correction according to user input |
||
|
Image storage |
Storage Card |
Built-in flash memory, CF card(2G),Up to 5000 images |
|
|
Storage mode |
Automatic/manual single file saving, IR and Visual image link saving |
||
|
File format-thermal |
JPEG,14 bit thermal image with measurement data |
||
| Voice annotation | Input via built-in microphone Up to 40 seconds of digital voice per image stored with image | ||
| Image improvenment | Averaging(S2、S4、S8、S16),Spatial filter | ||
| Laser pointer |
Laser pointer |
Class 2,1mw/635nm(red),IEC 60 285 |
|
|
Power supply |
Battery type |
Li-Ion, rechargeable |
|
|
Battery operating time |
2 hours continuous operation |
||
|
Charging system |
Intelligent charger or power supply adaptor(optional) online charge |
||
| Power saving | YES | ||
| External power | 10～15V DC | ||
| Environment |
operating temperature |
-15 ℃ - +50 ℃ |
|
|
Encapsulation |
IP54 |
||
|
Humidity |
≤90% non-condensing |
||
| Physical characteristics |
Weight |
1.83kg/1.69KG |
|
|
Dimensious |
305mm×130mm×135mm |
||

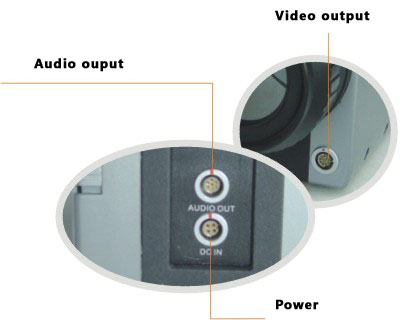

| Interface |
External DC input |
Yes |
|
|
Audio output |
Yes |
||
| Video output | PAL/NTSC/ VGA | ||
|
USB |
USB2.0 Image,measurement data transfer |
||
