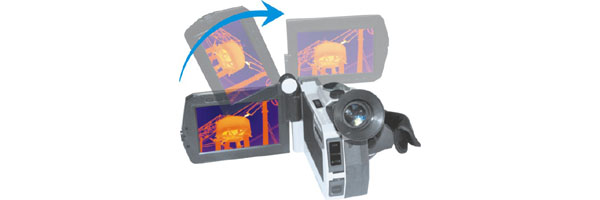

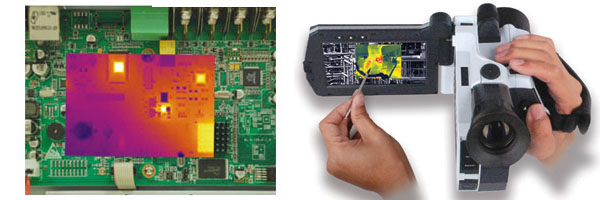

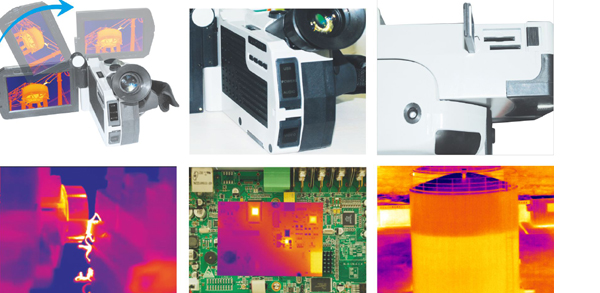

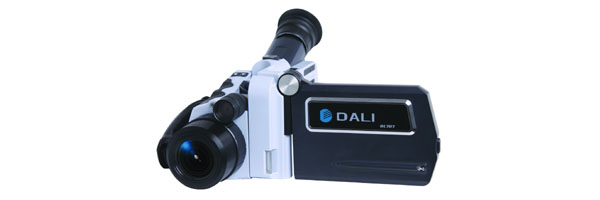

DL700H Series 640*480 thermal imaging camera

Item

DL700L

DL700H

Detector characteristics

　Detector type

　Uncooled FPA microbolometer

　Array size/format

　160×120

Image manage

　Field of view/min focus distance

　24^o×18^o /0.2m

　Spatial resolutions(IFOV)　

　0.65mrad

　Thermal sensitivity

　≤0.04℃@30℃

　Frame rate

　25/30Hz

　Focus

　Manual/Auto

　Spectral range

　8～14um

　Built-in visible light

　Yes

Image display

　SNR

　∑2,∑8,∑16,∑32,∑64,ON/OFF

Measurement

　Temperature ranges

　-40℃～+650℃

　Accuracy

　±2℃ or ±2% of reading, whichever is greater

　Measurement correction

　Automatic/manual

　Measurement mode

　Up to 10 movable areas(maximum, minimum and average temperatures).Up to 5 movable lines.Line profile. Isotherms. Temperature difference. Alarm(voice,color)

　Setup functions

　Date/time, temperature unit, language

　Emissivity correction

　Variable from 0.01 to 1.0

　Backgroud temperature correction

　Automatic correction according to user input

　Atmospheric transmission correction

　Automatic correction according to user input
object distance, humidity and temperature

Image storage

　Storage Card

　8G SD card, max 32G

　Storage mode

　Automatic/manual single file saving, IR and Visual image link saving

　Singal frane thermal file format

　JPEG,14 bit thermal image with measurement data

　Singal frane Visual file format

　JPEG, Stored together with the single image

　Voice annotation

　A built-in microphone Up to 40 seconds of digital voice clip with each cared thermal imaging

　Laser pointer

　Class 2,1mw/635nm(red),IEC 60 285

　Geo-tagging

　N/A

Power supply

　Battery type

　Li-Ion, rechargeable　

　Battery operating time

　2.5 hours continuous operation

　Charging system

　Intelligent charger or power supply adaptor 12V (optional) to random charge

　operating temperature

　-15 ℃ - +50 ℃

　Encapsulation

　IP54

　Humidity

　≤ 95% non-condensing

　Weight

　≤1.3kg

　Dimensious

　260mm×121mm×140mm

　External DC input

　Yes

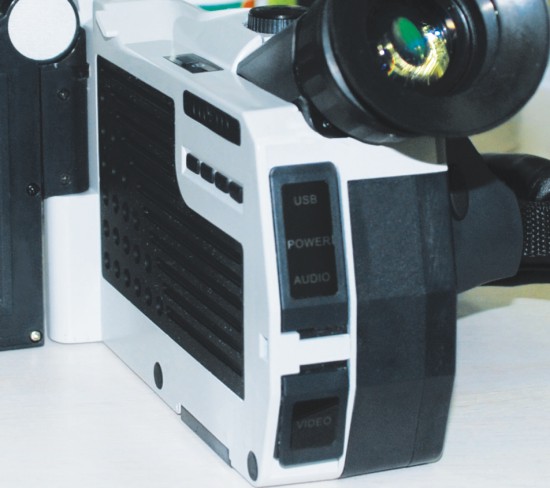

　Video output

　HDMI

　USB

　USB2.0 Image,measurement data transfer
