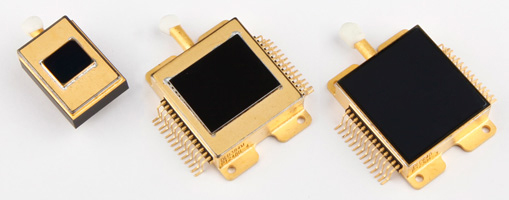

DLB384/DLC384/DLD384 Uncooled Infrared FPA Detector
-
DLB384/DLC384/DLD384 Uncooled Infrared FPA Detector
-
Series of Products -

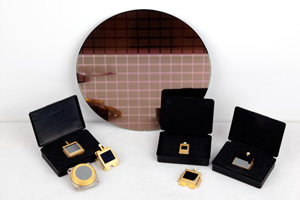

Series of Products
Complete Intellectual Property Right
◆Different resolution
◆Short integral time
◆Stable performance in temperature range -40℃ to +60℃
◆Extremely low thermal noise
◆Excellent nonuniformity
The Uncooled Microbolometer infrared FPA detector researched and developed by Dali has already been applied in industrial production. It has the advantages of high resolution, high sensitivity, low fixed pattern noise and fast response.Detector is manufactured in Standard MIL STD810/813, applicable to different industry.
| Item | DLB384/DLC384/DLD384 (35μm / 25μm / 17μm ) |
| Material | amorphous silicon |
| Array size | 384×288 |
| Pixel pitch | 35μm / 25μm / 17μm |
| Fill factor | ≥60% |
| Spectral range | 8-14μm |
| Temperature control | TEC |
| Frame rate | 30-60Hz |
| NETD | ≤60mK（f/1,300K,30-60Hz） |
| Thermal time constant | ≤5ms |
| Responsivity | ≥8mV/K |
| Operability | ≥99.5% |
| Power supply | 5V |
| Power consumption | ≤150mW（excluding TEC） |
| Output | single end |
| Dimension | 32mm×23.5mm×7.1mm（pin is not included） |
| Weight | ≤20g |
| Operating temperature | -40°C - +60°C |
| Storage temperature | -40°C - +85°C |
| Standards | MIL-STD-810 and -883 |
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
