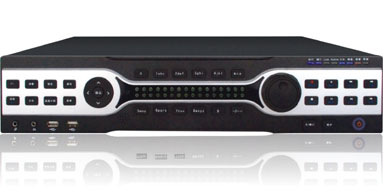

DVR600T Series DVR
-
DVR600T Series DVR
-

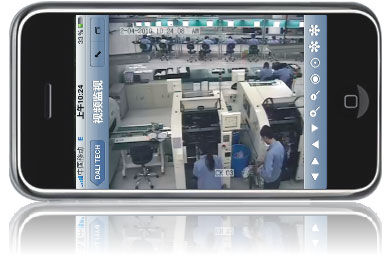

Cell phone viewing -
MAC OS
(1).jpg)
| ◆ 2 CH D1+30 CH CIF real-time recording | |
| ◆ 32 CH playback synchronously | |
| ◆ IPHONE, Android, Symbian and Windows Mobile for 3G live viewing | |
| ◆ Main,spot,matrix video output independently | |
| ◆ HDMI 1080P video output | |
| ◆ Graphical interface for search&playback | |
| ◆ Electronic zoom in live | |
| ◆ Build-in E-map view | ◆ Support alarm email function |
| ◆ Dual stream bit | ◆ SATA HDD, eSATA extension port |

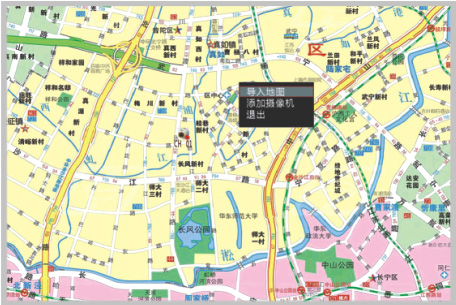

E-MAP
Cell phone viewing
MAC OS
|
Model
|
DV-DVR608T
|
DV-DVR616T
|
DV-DVR624T
|
DV-DVR632T
|
|
| Main processor | High Performance Embedded processor | ||||
| Operation system | Embedded RTOS | ||||
| VIDEO | |||||
| Format | PAL/NTSC | ||||
| Video compression | H.264 (Main Profile) | ||||
| Picture compression | JPEG | ||||
| Video input | 8/16/24/32 CH BNC (1.0Vp-p,75Ω) | ||||
| Main video output | 1CH VGA（800×600，1024×768，1280×1024） Or 1CH HDMI（Max support 1920×1080p@30fps,1920×1080i@60fps,adaptive output） |
||||
| Spot video output | 1CH BNC (1.0Vp-p,75Ω)，independent OSD | ||||
| Matrix video output | 1CH BNC (1.0Vp-p,75Ω)，support group circular monitoring | ||||
| AUDIO | |||||
| Compression | ADPCM | ||||
| Input | 8CH BNC (linear voltage,10.0KΩ) | 16 CH BNC (linear voltage,10.0KΩ) | |||
| Output | 2 CH RCA (linear voltage,1.0KΩ) | ||||
| Intercom | Independent CH for intercom（MiniJACK） | ||||
| DISPLAY | |||||
| Resolution | D1 704×576(PAL) 704×480 (NTSC) | ||||

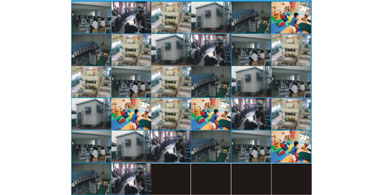

| Division | 1/4/6/9/13/16/20/25/36 split screen, with e-map preview mode | ||||
| RECORD | |||||
| Resolution | QCIF：176×144(PAL) 176×120(NTSC) CIF：352×288(PAL) 352×240 (NTSC) HD1：704×288(PAL) 704×240 (NTSC) D1: 704×576(PAL) 704×480 (NTSC) |
||||
| Frame rate | 25(PAL)/30(NTSC) FPS all real time, flexible | ||||
| Quality | 5 Levels (Basic,Medium,Good,High,Best) | ||||
| Mode | Manual, motion detection, Timing, Alarm trigger, Auto start. | ||||
| Video output stream | 16K-2M bps adjustable | ||||
| Playback | 8 CH synchronously | 16 CH synchronously | 24 CH synchronously | 32 CH synchronously | |
| HDD | |||||
| HDD interface | 8 SATA interface , Max.2T/HDD，support 1 eSATA interface | ||||
| mode | Customize HDD's r/w attribute | ||||
| Alarm | |||||
| Input | 8 CH | 16 CH | |||
| output | 4 CH | ||||
| Other | |||||
| System resource | Multi-CH recording, playback, network operation and monitoring simultaneously | ||||
| Network | RJ45,auto adapt 10/100/1000M Ethernet,support PPPoE,DHCP&DDNS | ||||
| USB port | 3 USB2.0 ,support mouse, flash memory,Remote HDD and DVD writer | ||||
| Communication port | 1 RS232 port , 2 RS422 port | ||||
| Power supply | AC 220/230V 50/60HZ or AC 100V-240V 50/60Hz | ||||
| Power(without HDD) | 40W/42W/45W/48W | ||||
| Weight | 11KG | ||||
| Device dimension(W×D×H) | 440×450×100 mm (2U) | ||||
| Shipping dimension(W×D×H) | 540×540×190 mm | ||||
| Operating environment | Humidity:10～90% RH, Temperature:-10℃ ～55℃ | ||||
