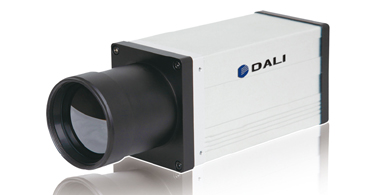

S660-3-40N/S660-3-75N
-
S660-3-40N/75N
-

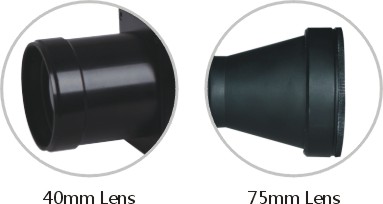

Optional lens -

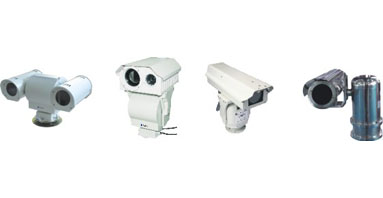

Binoculars/Monocular/Anti-Explosion
◆384*288 Uncooled FPA microbolometer
◆Full realtime monitoring, scalable to standard platform software
◆Standard H.264 video compressed technology
◆Support web browsing
◆Support SD card local memory
◆Support universal control protocols like PELCO-D, PELCO-P,DALI
◆Support PPPoE and other Network protocols
|
Item
|
S660-3-40N
|
S660-3-75N
|
|
| Detector characteristics | |||
| Detector type | Uncooled FPA Microbolometer | ||
| Pixels | 384×288 | ||
| Waveband | 8-14um | ||
| Image characteristics | |||
| Field of view/ Min distance | 13.7°×10.3°/1m | 7.3°×5.5°/10m | |
| Spatial resolutions(IFOV) | 0.62mrad0.33mrad | 0.33mrad | |
| NETD | ＜60mk @ 30℃ | ||
| Frequency | 50/60Hz | ||
| Electronic focusing | 2X | ||
| Focus | Automatic/Manual | ||
| Brightness/Gain adjustment | Auto-brightness/gain; Auto-brightness/Manual gain; Manual -brightness/gain | ||
| Automatic adjust brightness/gain mode | 2 fixed modes, 8 user-defined modes | ||
| Polarity | Hot black/hot white | ||
| Noise reduction | Yes | ||
| Image enhancement | Yes | ||
| Calibration | Manual/Auto | ||
| Cros division | Display/Hide | ||
| Image storage | |||
| Image resolution | Single frame, analog/digital compressed: D1 Original data image: 384*288 | ||
| Video compressed standard | H.264/JPG | ||
| Compression output rate | 32Kbps～1Mbps | ||
| Network functions | |||
| Setting function | language,IP Address | ||
| image storage | Rear manual / automatic single-frame image storage, continuous recording , front-end SD / SDHC memory ( supports NAS, iSCSI network protocol ) | ||
| Intelligent alarm | Motion detection, video loss , cable break , IP address conflicts, the memory is full , the memory error | ||
| Network | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP（FTP） | ||
| RS485 | PELCO-D, PELCO-P, DALI | ||
| Common features | A key reset , anti- flicker , heartbeat, password protection, watermarking technology | ||
| Power System | |||
| External power | 10-15V DC,POE supply | ||
| Consumption | 7W（25℃ working normally） | ||
| Environment | |||
| Operating temperature | -20℃～+50 ℃ | ||
| Storage temperature | -40℃～+70 ℃ | ||
| Encapsulation | IP40 | ||
| Anti-shock | 25G，IEC68-2-29 | ||
| Vibration resistance | 2G，IEC68-2-6 | ||
| Physical characteristics | |||
| Dimensions (W×H×D) | 62mm×80mm×223mm | 96mm×96mm×253mm | |
| Weight | ＜0.9Kg | ＜1.1Kg | |
